Small Metal Parts Manufacturing: Processes, Materials, Precision, and Cost Optimization

Modern industries rely heavily on small metal parts manufacturing to produce precision components used in aerospace, automotive, medical devices, robotics, electronics, industrial automation, and consumer products. Although these parts are physically small, they often require micron-level tolerances, excellent surface quality, and consistent dimensional accuracy. Selecting the appropriate manufacturing method is one of the most important decisions because it directly affects production cost, delivery time, mechanical properties, and long-term product reliability.

Manufacturers today combine CNC machining, metal stamping, precision casting, powder metallurgy, metal injection molding (MIM), laser cutting, and additive manufacturing to meet different production volumes and complexity requirements. Understanding the strengths and limitations of each process enables engineers to choose the most efficient solution for their applications.

---

Five Major Topics Covered in This Guide

1. Choosing the Right Manufacturing Process for Small Metal Parts
2. Material Selection and Performance Considerations
3. Precision Tolerances and Quality Control
4. Surface Finishing and Post-Processing Options
5. Cost Optimization from Prototype to Mass Production

---

Choosing the Right Manufacturing Process for Small Metal Parts

No single manufacturing process is suitable for every component. The ideal solution depends on several engineering factors:

• Annual production volume
• Material type
• Part geometry
• Required tolerance
• Surface finish
• Mechanical strength
• Budget
• Delivery schedule

Selecting the wrong process may increase manufacturing costs by several times while reducing production efficiency.

---

Comparing Common Manufacturing Processes

Manufacturing Process	Best Production Volume	Typical Tolerance	Complexity	Tooling Cost	Unit Cost
CNC Machining	Low–Medium	±0.005 mm	Excellent	None	Medium
Metal Stamping	High	±0.05 mm	Medium	High	Very Low
Metal Injection Molding	High	±0.3%	Very High	Very High	Very Low
Die Casting	High	±0.1 mm	High	High	Low
Precision Investment Casting	Medium	±0.15 mm	Excellent	Medium	Medium
Powder Metallurgy	High	±0.02 mm	Moderate	High	Low
Swiss CNC Machining	Low–High	±0.002 mm	Excellent	None	Medium

As shown above, each manufacturing technology excels in different scenarios.

---

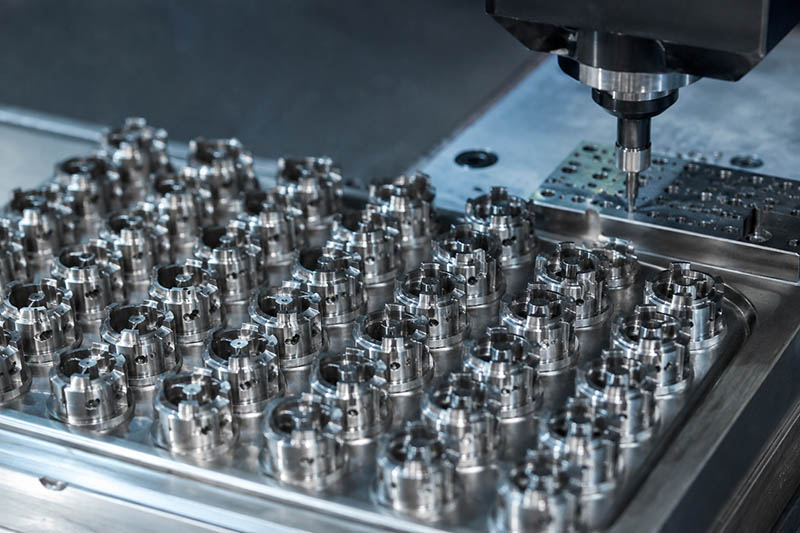

CNC Machining for Precision Components

CNC machining remains the preferred manufacturing method for high-precision small metal components because it removes material directly from solid stock while maintaining excellent dimensional control.

Typical applications include:

• Aerospace fasteners
• Hydraulic valve bodies
• Medical implants
• Optical equipment
• Robotic joints
• Semiconductor fixtures

A five-axis CNC machining center can machine multiple surfaces during one setup, significantly reducing accumulated positioning errors while improving production efficiency.

For example:

A titanium orthopedic implant may require:

• ±0.01 mm dimensional tolerance
• Ra 0.4 μm surface finish
• Complex curved geometry
• Internal threaded holes

Such requirements are difficult to achieve through casting or stamping but are well suited to precision CNC machining.

---

Swiss CNC Machining for Micro Parts

Swiss-type CNC lathes have become increasingly popular for manufacturing miniature cylindrical components.

Advantages include:

• Outstanding concentricity
• Minimal deflection
• Continuous bar feeding
• High productivity
• Excellent repeatability

Typical industries include:

Industry	Example Components
Medical	Bone screws, dental implants
Electronics	Connector pins
Automotive	Fuel injector nozzles
Aerospace	Precision shafts
Robotics	Miniature drive pins

Swiss machining is particularly effective for parts with a length-to-diameter ratio greater than 4:1, where conventional turning may suffer from vibration and dimensional instability.

---

Metal Stamping for Large Production Runs

When manufacturing millions of identical metal components, metal stamping offers exceptional productivity.

Common stamped products include:

• Brackets
• Electrical terminals
• Battery contacts
• Heat shields
• Electronic housings

Progressive dies allow multiple operations—including punching, bending, embossing, and trimming—to be completed in a single press cycle.

Although tooling investment is high, the cost per part decreases dramatically as production volume increases.

For example:

Annual Quantity	Recommended Process
100 pcs	CNC Machining
1,000 pcs	CNC Machining
20,000 pcs	CNC or Casting
100,000 pcs	Metal Stamping
1,000,000 pcs	Progressive Die Stamping

This comparison demonstrates why production volume is one of the first considerations when selecting a manufacturing process.

---

Metal Injection Molding (MIM) for Complex Small Parts

Metal Injection Molding combines plastic injection molding technology with powdered metallurgy to produce intricate metal parts.

The process includes:

1. Mixing metal powder with binder
2. Injection molding
3. Debinding
4. Sintering
5. Secondary machining (if required)

Typical materials include:

• Stainless Steel 316L
• 17-4 PH
• Tool Steel
• Titanium alloys

Advantages include:

• Extremely complex geometries
• Near-net-shape production
• Minimal machining
• Excellent repeatability

However, MIM requires expensive molds and is generally economical only for high-volume production.

---

Real Manufacturing Example

Suppose an electronics manufacturer requires:

• Stainless steel bracket
• 18 mm × 12 mm × 3 mm
• Annual demand: 600,000 pieces

Several manufacturing methods can be evaluated.

Process	Estimated Cost	Suitability
CNC Machining	Very High	Poor
Laser Cutting + Bending	Medium	Good
Progressive Stamping	Low	Excellent
MIM	Medium	Acceptable

Because the geometry is relatively simple and production volume is high, progressive stamping provides the lowest overall manufacturing cost while maintaining excellent consistency.

---

Material Selection and Performance Considerations

Selecting the right material is just as important as selecting the manufacturing process. The material determines not only the strength and durability of the finished component but also its machinability, corrosion resistance, thermal performance, and manufacturing cost.

An unsuitable material may increase machining time, shorten tool life, or fail to meet the mechanical requirements of the application. Engineers typically evaluate material properties alongside production volume and operating environment before finalizing a design.

---

Key Factors in Material Selection

When choosing a metal for small precision parts, manufacturers commonly consider:

• Mechanical strength
• Hardness
• Weight
• Corrosion resistance
• Thermal conductivity
• Electrical conductivity
• Machinability
• Wear resistance
• Availability
• Cost

The importance of each factor varies depending on the intended application.

For example:

• Aerospace components prioritize high strength-to-weight ratio.
• Medical devices require excellent biocompatibility and corrosion resistance.
• Electronic connectors demand high electrical conductivity.
• Industrial tooling focuses on hardness and wear resistance.

---

Comparison of Common Metals for Small Parts Manufacturing

Material	Strength	Machinability	Corrosion Resistance	Typical Applications
Aluminum 6061	Medium	Excellent	Good	Housings, brackets, robotics
Aluminum 7075	Very High	Excellent	Moderate	Aerospace parts
Stainless Steel 304	Medium	Fair	Excellent	Food equipment, consumer products
Stainless Steel 316	Medium	Fair	Outstanding	Marine, medical devices
Brass C360	Medium	Excellent	Good	Valves, electrical fittings
Copper C110	Low	Good	Excellent	Electrical contacts
Titanium Grade 5	Very High	Difficult	Excellent	Aerospace, implants
Tool Steel D2	Extremely High	Moderate	Poor	Dies, punches, cutting tools

These materials cover the majority of applications encountered in precision small metal parts manufacturing.

---

Aluminum: Lightweight and Easy to Machine

Aluminum alloys are among the most widely used materials for precision components because they combine low density with good strength and excellent machinability.

Benefits include:

• High cutting speeds
• Reduced machining time
• Good thermal conductivity
• Easy anodizing
• Excellent strength-to-weight ratio

Common applications include:

• UAV components
• Camera housings
• Heat sinks
• Robotic frames
• Consumer electronics
• Precision fixtures

Compared with steel, aluminum can significantly reduce component weight while maintaining sufficient structural performance in many applications.

Precision Tolerances and Quality Control

Precision is the defining characteristic of high-quality small metal parts. Whether manufacturing aerospace fasteners, medical implants, hydraulic valves, or semiconductor fixtures, dimensional accuracy directly influences assembly performance, reliability, and product lifespan.

Unlike larger components that may tolerate minor dimensional variations, miniature metal parts often function within assemblies where even a deviation of 0.01 mm can cause excessive wear, vibration, leakage, or complete assembly failure.

For this reason, precision manufacturing combines advanced CNC equipment, optimized machining strategies, in-process inspection, and rigorous quality management to consistently produce parts within specification.

---

Understanding Manufacturing Tolerances

Tolerance refers to the allowable variation from a specified dimension. Tighter tolerances improve assembly accuracy but also increase machining complexity, inspection time, and production cost.

The following table illustrates typical tolerance capabilities for different manufacturing processes.

Manufacturing Process	Typical Tolerance	High-Precision Capability
CNC Milling	±0.02 mm	±0.005 mm
CNC Turning	±0.01 mm	±0.003 mm
Swiss CNC Turning	±0.005 mm	±0.002 mm
Precision Grinding	±0.002 mm	±0.001 mm
Metal Stamping	±0.05 mm	±0.02 mm
Investment Casting	±0.15 mm	±0.08 mm
Die Casting	±0.10 mm	±0.05 mm
MIM	±0.30%	±0.10%

While ultra-tight tolerances improve part accuracy, they should only be specified where functionally necessary. Over-specifying tolerances increases machining time, tool wear, inspection costs, and scrap rates without adding practical value.

---

Critical Dimensions That Require Tight Control

Not every dimension on a part needs micron-level precision. Engineers typically identify critical-to-function (CTF) features that have the greatest influence on assembly and performance.

Examples include:

Feature	Typical Tolerance
Bearing Bore	±0.005 mm
Shaft Diameter	±0.003 mm
Thread Pitch Diameter	ISO Class Standard
Flatness	0.01 mm
Parallelism	0.01 mm
Perpendicularity	0.01 mm
Concentricity	0.005 mm
Surface Roughness	Ra 0.4–1.6 μm

Other non-functional dimensions may allow significantly wider tolerances, reducing manufacturing costs while maintaining overall performance.

---

Factors Affecting Dimensional Accuracy

Achieving consistent precision requires control over multiple variables throughout the manufacturing process.

Machine Tool Rigidity

High-quality machining centers feature rigid cast iron structures, precision linear guides, and thermally stable spindles. Reduced machine vibration leads to improved dimensional consistency and surface finish.

Cutting Tool Selection

Tool geometry, coating, and wear directly influence machining accuracy. For example:

• Carbide end mills for aluminum maintain sharp cutting edges at high spindle speeds.
• TiAlN-coated tools are suitable for stainless steel and heat-resistant alloys.
• Diamond-coated tools are preferred for graphite and abrasive composite materials.

Regular tool life monitoring prevents dimensional drift caused by tool wear.

Workholding Stability

Improper fixturing can result in vibration, deformation, or positional errors. Precision vises, vacuum fixtures, soft jaws, and custom fixtures are commonly used to securely hold small parts during machining.

Thermal Expansion

Temperature changes can subtly alter both the workpiece and machine dimensions. In high-precision environments, climate-controlled workshops maintained at 20 ±1°C help minimize thermal variation and ensure measurement consistency.

---

In-Process Inspection

Rather than waiting until production is complete, manufacturers increasingly perform inspection throughout the machining process.

Typical inspection methods include:

• First Article Inspection (FAI)
• In-process probing
• Tool wear compensation
• Statistical Process Control (SPC)
• Automatic tool breakage detection

Modern CNC machines often use touch probes to automatically measure features and adjust tool offsets in real time, improving consistency while reducing manual intervention.

---

Final Inspection Equipment

Before shipment, finished components undergo comprehensive dimensional verification using specialized metrology equipment.

Inspection Equipment	Purpose
Coordinate Measuring Machine (CMM)	Full dimensional inspection
Optical Comparator	Profile measurement
Laser Scanner	3D contour verification
Height Gauge	Linear measurements
Digital Micrometer	Outside diameter measurement
Bore Gauge	Internal diameter measurement
Surface Roughness Tester	Ra measurement
Thread Gauge	Thread verification

These inspection methods ensure every critical feature meets engineering drawings and customer specifications.

---

Example: Medical Connector Housing

A manufacturer producing a stainless steel medical connector housing may require:

• Overall tolerance: ±0.01 mm
• Bore concentricity: 0.005 mm
• Surface roughness: Ra 0.4 μm
• Burr-free edges
• 100% visual inspection

To achieve these requirements, the manufacturing process may include:

1. Swiss CNC turning
2. Precision milling
3. Deburring under magnification
4. Ultrasonic cleaning
5. Passivation
6. CMM inspection
7. Final packaging in a cleanroom

Each step contributes to maintaining dimensional accuracy and product reliability.

---

Surface Finishing and Post-Processing Options

Machining produces the desired geometry, but surface finishing enhances appearance, corrosion resistance, wear resistance, and overall functionality. Selecting the appropriate post-processing method depends on the material, application, and environmental conditions.

---

Why Surface Finishing Matters

Proper surface finishing can:

• Improve corrosion resistance
• Increase wear resistance
• Enhance fatigue life
• Reduce friction
• Improve electrical conductivity
• Improve cosmetic appearance
• Remove machining marks
• Meet industry standards

For precision components used in demanding environments, surface treatment is often as important as the machining process itself.

---

Common Surface Finishing Processes

Surface Finish	Suitable Materials	Primary Benefits
Anodizing	Aluminum	Corrosion resistance, decorative finish
Hard Anodizing	Aluminum	Wear resistance, increased hardness
Electropolishing	Stainless Steel	Smooth surface, improved cleanliness
Passivation	Stainless Steel	Enhanced corrosion resistance
Zinc Plating	Carbon Steel	Rust protection
Nickel Plating	Steel, Brass	Wear and corrosion resistance
Chrome Plating	Steel	Hardness and decorative appearance
Powder Coating	Various Metals	Durable protective coating
Sand Blasting	Most Metals	Uniform matte finish
Bead Blasting	Aluminum, Stainless Steel	Smooth satin appearance

Each finishing method offers unique advantages depending on the application.

---

Anodizing for Aluminum Components

Anodizing is one of the most common surface treatments for aluminum precision parts. It creates a controlled oxide layer that improves corrosion resistance, hardness, and appearance.

Common anodized colors include:

• Natural
• Black
• Blue
• Red
• Gold
• Green
• Silver

Hard anodizing is widely used for:

• Aerospace brackets
• Drone components
• Robotic arms
• Bicycle parts
• Industrial fixtures

The oxide layer can significantly increase surface hardness while maintaining the lightweight advantages of aluminum.

---

Passivation for Stainless Steel

Unlike coatings, passivation is a chemical treatment that removes free iron from the surface of stainless steel, allowing a protective chromium oxide layer to form naturally.

Applications include:

• Surgical instruments
• Food processing equipment
• Marine hardware
• Pharmaceutical machinery
• Laboratory devices

Passivation improves corrosion resistance without altering the part’s dimensions or appearance, making it ideal for precision components.

---

Electropolishing

Electropolishing removes microscopic surface irregularities through an electrochemical process, producing an exceptionally smooth and clean finish.

Benefits include:

• Lower surface roughness
• Improved corrosion resistance
• Easier cleaning
• Reduced bacterial adhesion
• Enhanced fatigue performance

Industries such as medical, semiconductor, and food processing frequently specify electropolishing for critical components.

---

Example: Surface Finish Selection

Consider three different components:

Component	Material	Recommended Finish	Reason
UAV Motor Mount	Aluminum 7075	Hard Anodizing	Wear resistance and lightweight
Marine Valve Stem	Stainless Steel 316	Passivation	Corrosion resistance in saltwater
Hydraulic Shaft	Alloy Steel	Hard Chrome Plating	Wear resistance and low friction

Choosing the appropriate finish ensures that each part performs reliably in its intended operating environment.

---

Deburring and Edge Preparation

Small metal parts often contain sharp edges or burrs after machining. These imperfections can interfere with assembly, damage mating components, or create safety risks.

Common deburring methods include:

• Manual deburring
• Vibratory tumbling
• Thermal deburring
• Electrochemical deburring
• Abrasive flow machining

For high-precision industries such as aerospace and medical manufacturing, edge quality is carefully controlled to ensure safe handling and proper assembly.

Cost Optimization from Prototype to Mass Production

Cost optimization is one of the most important objectives in small metal parts manufacturing. While achieving high precision and excellent quality is essential, manufacturers must also minimize production costs to remain competitive. The total cost of a metal part extends far beyond machining time—it includes material utilization, tooling, labor, inspection, secondary processing, logistics, and inventory management.

The key is to optimize the entire manufacturing lifecycle rather than focusing solely on the unit price.

---

Understanding the Cost Structure

The overall manufacturing cost of a small metal part can be divided into several categories.

Cost Category	Typical Percentage	Optimization Opportunity
Raw Material	25–45%	Improve material utilization
CNC Machining	20–40%	Reduce cycle time
Tooling	5–25%	Standardize cutting tools
Surface Finishing	5–15%	Batch processing
Inspection	5–10%	Automated measurement
Packaging & Logistics	3–8%	Optimized packaging
Scrap & Rework	2–8%	Process control

For high-volume production, even a 5-second reduction in machining time can translate into significant annual savings.

---

Design for Manufacturability (DFM)

One of the most effective ways to reduce costs is to apply Design for Manufacturability (DFM) principles during the product development stage.

A well-designed component is easier to machine, requires fewer setups, and minimizes unnecessary operations.

Recommended DFM Practices

• Use standard drill sizes whenever possible.
• Avoid unnecessarily deep pockets.
• Minimize extremely thin walls.
• Reduce the number of setups required.
• Standardize thread sizes.
• Add appropriate internal corner radii instead of sharp corners.
• Specify tight tolerances only on functional features.

Example Comparison

Poor Design	Improved Design
Multiple custom hole diameters	Standardized drill sizes
Sharp internal corners	Radius equal to tool diameter
Deep narrow pocket	Wider, machinable pocket
Excessive tolerance on all dimensions	Tight tolerance only where required

By implementing these improvements, machining time can often be reduced by 15–30%, while extending tool life and reducing production costs.

---

Material Utilization

Material waste directly impacts manufacturing costs, especially when working with expensive alloys such as titanium, Inconel, or high-performance stainless steels.

Efficient nesting, optimized stock sizes, and near-net-shape manufacturing methods help maximize material utilization.

For example:

Material	Approximate Relative Cost	Typical Material Utilization
Aluminum 6061	Low	80–90%
Brass C360	Medium	75–85%
Stainless Steel 316	Medium-High	70–85%
Titanium Grade 5	High	60–75%
Inconel 718	Very High	55–70%

For high-value materials, reducing waste by just a few percentage points can result in substantial cost savings over large production runs.

---

Reducing Machining Time

Machining time is one of the largest contributors to the overall manufacturing cost. Manufacturers continuously optimize toolpaths and cutting strategies to improve efficiency without compromising quality.

Common optimization techniques include:

• High-speed machining (HSM)
• Trochoidal milling
• Adaptive clearing strategies
• Multi-axis machining
• High-performance carbide tooling
• Optimized spindle speeds and feed rates

Example

A precision aluminum housing originally required 22 minutes of machining time.

After optimizing the CAM toolpath:

Operation	Before	After
Rough Milling	12 min	8 min
Finish Milling	6 min	5 min
Drilling	4 min	3 min
Total	22 min	16 min

The result was a 27% reduction in cycle time, increasing production capacity without additional equipment.

---

Automation and Smart Manufacturing

Automation is increasingly adopted to improve consistency, reduce labor costs, and support unattended production.

Common automation solutions include:

• Robotic loading and unloading
• Automatic pallet changers
• Tool life monitoring
• In-machine probing
• Barcode traceability
• Manufacturing Execution Systems (MES)

These technologies enable manufacturers to operate multiple machines simultaneously while maintaining stable quality and reducing downtime.

---

Selecting the Right Manufacturing Method Based on Production Volume

Production quantity has a major influence on the most economical manufacturing process.

Annual Production Volume	Recommended Process
1–100 pcs	CNC Machining
100–1,000 pcs	CNC Machining or Swiss Machining
1,000–10,000 pcs	CNC + Dedicated Fixtures
10,000–100,000 pcs	Investment Casting + CNC Finishing
Over 100,000 pcs	Metal Stamping, Die Casting, or MIM

Choosing a process that aligns with production volume helps balance tooling investment, lead time, and unit cost.

---

Case Study: Reducing the Cost of a Precision Valve Component

A manufacturer producing a stainless steel valve component sought to reduce costs while maintaining performance.

Original Process

• Material: Stainless Steel 316
• CNC Machining Time: 18 minutes
• Surface Finish: Electropolishing
• Monthly Production: 12,000 pieces

Optimization Measures

• Standardized drill diameters
• Combined two machining operations into one setup
• Introduced custom soft jaws
• Optimized cutting parameters
• Automated in-process probing

Results

Metric	Before	After
Cycle Time	18 min	13 min
Tool Consumption	100%	78%
Scrap Rate	2.8%	0.9%
Monthly Output	12,000 pcs	16,000 pcs
Unit Manufacturing Cost	Reduced by approximately 22%	—

This example demonstrates how process optimization, rather than changing materials or equipment, can significantly improve manufacturing efficiency and profitability.

---

Why Partner with Xavier for Small Metal Parts Manufacturing?

Selecting a manufacturing partner is just as important as selecting the right process or material. An experienced supplier not only produces high-quality parts but also provides engineering support, manufacturability recommendations, and reliable project management throughout the production lifecycle.

At Xavier, we specialize in custom small metal parts manufacturing for customers across industries such as aerospace, automotive, robotics, medical devices, industrial automation, electronics, and energy.

Our capabilities include:

• Precision CNC milling and turning
• 5-axis CNC machining for complex geometries
• Swiss machining for miniature precision parts
• Prototype and low-volume production
• High-volume manufacturing support
• Aluminum, stainless steel, brass, copper, titanium, tool steel, and engineering plastics
• A wide range of surface finishing options, including anodizing, passivation, electropolishing, nickel plating, zinc plating, bead blasting, and powder coating
• Comprehensive quality inspection using CMM, optical measurement systems, and advanced metrology equipment

Whether you need a single prototype or hundreds of thousands of production components, Xavier focuses on delivering consistent quality, competitive pricing, and on-time delivery. Our engineering team works closely with customers from design review through final production, helping optimize manufacturability, reduce costs, and ensure every precision part meets the required specifications.

We are an integrated CNC machining manufacturer specializing in custom CNC manufacturing services and precision machining of various metal parts. Our capabilities include CNC electrogalvanizing surface finishing, CNC anodizing surface finishing, and CNC chemical conversion coating surface finishing to meet different industrial requirements.

As a professional CNC electrogalvanizing manufacturer, we provide bulk CNC anodizing service and offer competitive CNC chemical conversion coating pricing. Feel free to contact us for more details.

Some of the images and text in this article are collected and compiled from the internet. If there is anything inappropriate, please contact us for processing.
