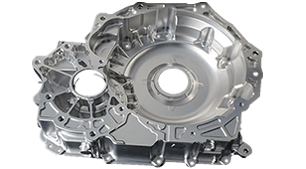

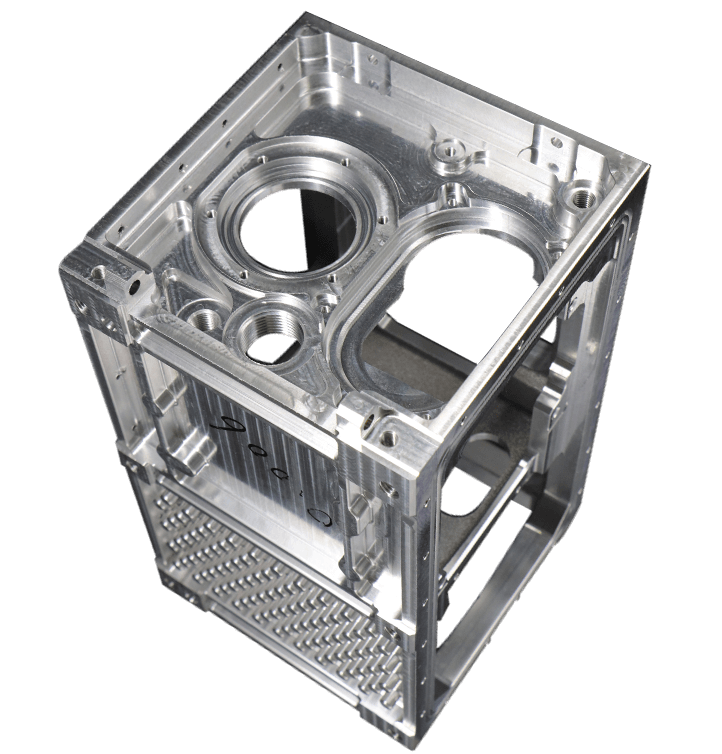

Aluminum
High machinability and ductility, good strength-to-weight ratio. Aluminum alloys have good strength-to-weight ratio, high thermal and electrical conductivity, low density and natural corrosion resistance. Can be anodized.
Order CNC milling parts online
Our Certificates:
High quality service Ability
Xavier’s three factories have more than 100 machines supporting 3/4/5-axis CNC milling and horizontal CNC milling services, helping you quickly obtain custom CNC milled parts from simple to complex.
Xavier cloud system
Support RFQ/FAI/DFM/COC/3DCMM download, provide complete FMEA and PFMEA demand support, and ensure the stable implementation of the process.
One-stop ordering service
Provide DFM and diversified surface treatments according to your product characteristics/MOQ requirements to provide you with one-stop ordering service and machine free samples for you.

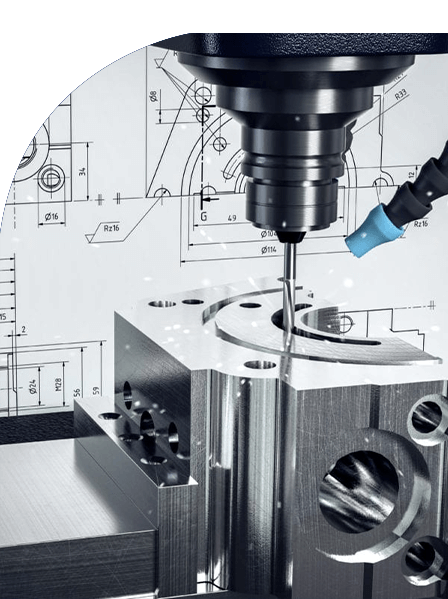

Diversified CNC Milling Ability
We provide 3/4/5-axis CNC milling and horizontal CNC milling services to help you quickly obtain custom CNC milled parts from simple to complex.
5 axis CNC milling
5-axis machining provides manufacturing feasibility for designing parts with very complex 3D geometries with high economic efficiency.
4 axis CNC milling
Four-axis milling is suitable for mass production of polyhedral milled parts, milling three three-dimensional surfaces at a time
3 axis CNC Milling
3-axis milling is the most widely used CNC machining process and is generally used for machining simple parts. Equipment cost is low.
Horizontal CNC Milling
Horizontal CNC milling is a CNC milling method in which the cutting spindle is kept parallel to the table. The rigidity of the machine tool is superior.
Maximum part size for 3- and 3+2-axis CNC milling
There are several types of CNC milling machines, each with its own distinct maximum part size. 3-axis and 3+2 axis machines have the lowest start-up costs and can produce parts with relatively simple geometries.
| Size | Max. part size for soft metals [1] & plastics | Max. part for hard metals [2] | Min. feature size | |
| Metric units | 2000 x 1500 x 200 mm 1500 x 800 x 500 mm | 1200 x 800 x 500 mm | Ø 0.50 mm | |
| Imperial units | 78.7 x 59.0 x 7.8 in 59.0 x 31.4 x 27.5 in | 47.2 x 31.4 x 19.6 in | Ø 0.019 in | |
| Material | Aluminum, copper & brass | Stainless steel & tool steel | alloy steel & mild steel |
| Size | Max. part size for soft metals [1] & plastics | Max. part for hard metals [2] | Min. feature size | |
| Metric units | 2000 x 1500 x 200 mm | 1200 x 800 x 500 mm | Ø 0.50 mm | |
| Imperial units | 78.7 x 59.0 x 7.8 in | 47.2 x 31.4 x 19.6 in | Ø 0.019 in | |
| Material | Aluminum, copper & brass | Stainless steel & tool steel | alloy steel & mild steel |
Maximum part size for 5-axis CNC milling
The more advanced of the milling machine family, 5-axis centers can produce parts with more complex geometries. These machines require fewer machine setups so they are more productive.
| Size | Max. part size for all materials | Min. feature size | |
| Metric units | 2000 x 1500 x 200 mm | Ø 0.50 mm | |
| Imperial units | 78.7 x 59.0 x 7.8 in | Ø 0.019 in | |
| Material | Aluminum, copper & brass | Stainless steel, tool steel, alloy steel & mild steel |
materials
Available materials for CNC milling
We can provide instant quotes for over 50 types of metal and plastic machining, suitable for CNC machining of a wide variety of metals, for applications in a variety of industries. Ideal for one-off prototypes and end-use custom parts.
Stainless steel
High tensile strength, corrosion and temperature resistant. Stainless steel alloys have high strength, ductility, wear and corrosion resistance. They can be easily welded, machined and polished.
Mild steel
High machinability and weldability, high stiffness. Mild steels are low-carbon metal alloys offering good mechanical properties, machinability and weldability at low cost. Can be carburized to increased hardness.
Copper
Excellent thermal and electrical conductivity Copper offers excellent thermal and electrical conductivity, it's often used for busbars, wire connectors, and other electrical applications. Copper has a glossy reddish-orange appearance.
Titanium
Excellent strength to weight ratio, used in aerospace, automotive and medical industries. Titanium is a metal with excellent strength-to-weight ratio, low thermal expansion and high corrosion resistance that is sterilizable and biocompatible.
Tool steel
Tool steel has high hardness and can maintain high hardness and red hardness at high temperatures, as well as high wear resistance and appropriate toughness. Tool steel is generally divided into carbon tool steel, alloy tool steel and high-speed tool steel.
Superalloy
Superalloys have excellent high-temperature strength, good oxidation resistance and hot corrosion resistance, good fatigue properties, fracture toughness and other comprehensive properties, and are mainly used in the aerospace and energy fields.
Brass
Brass has strong wear resistance, high strength and hardness, and strong resistance to chemical corrosion. Brass is often used to make wear-resistant parts such as valves and watch movements.
Alloy steel
Alloy steel has special properties such as high strength, high toughness, wear resistance, corrosion resistance, low temperature resistance, high temperature resistance, and magnetism.
Plastics
Engineering plastics have excellent comprehensive properties, such as high rigidity, low creep, high mechanical strength, good heat resistance, and good electrical insulation. They can be used in harsh chemical and physical environments for a long time and can replace metals as engineering structural materials.
-
Plating
-
Anodizing
-
Spraying
CNC milling surface finishes
Advantage
Improve your part’s performance by selecting high-quality surface finishes that enhance the roughness, hardness, chemical resistance and cosmetic features of your finished component.
Supporting services
We support high-quality surface treatment requirements, covering sandblasting, oxidation, electroplating, electrophoresis, baking paint, chemical conversion coating, passivation, polishing, blackening, QBQ, etc., and provide data such as film thickness, hardness, color, salt spray test, etc. Adhesion report.
Xavier’s CNC Milling Tolerances
Our production services can help you achieve the tightest tolerances required for non-standard custom CNC machined parts,Level 5 and Level 6 geometric tolerance requirements are our advantage, and we have a wealth of classic parts cases..
| CNC Machining Tolerances | Linear dimension range（mm) | ||||||||
| Type | Geometric Characteristics | Symbol | 0.5 – 3 | 3 – 6 | 6 – 30 | 30 – 120 | 120 – 400 | 400 – 1000 | 1000 – 2000 |
| Dimension | Length |    | ± 0.005 | ± 0.01 | ± 0.02 | ± 0.05 | |||
| Diameter |   | 0.006 | 0.002 | 0.002 | 0.005 | —— | —— | ||
| Angle |   | ± 0.01 | ± 0.01 | ± 0.05 | —— | ||||
| Form | Straightness |   | 0.002 | 0.003 | 0.005 | 0.01 | —— | ||
| Flatness | Â  | 0.001 | 0.003 | 0.003 | 0.005 | 0.01 | 0.1 | ||
| Circularity |   | 0.001 | 0.001 | 0.002 | 0.003 | —— | —— | ||
| Cylindricity |   | 0.002 | 0.002 | 0.003 | 0.05 | 0.2 | —— | ||
| Profile | Profile of a line | Â  | 0.002 | 0.002 | 0.003 | 0.01 | 0.02 | 0.3 | |
| Profile of a surface | Â  | 0.01 | 0.02 | 0.05 | 0.1 | 0.15 | 0.3 | ||
| Orientation | Parallelism |   | 0.003 | 0.005 | 0.01 | 0.05 | 0.1 | —— | |
| Perpendicularity |   | 0.002 | 0.002 | 0.05 | 0.01 | 0.1 | —— | ||
| Angularity |   | 0.002 | 0.02 | 0.1 | —— | ||||
| Location | Position | Â  | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 | ||
| Concentricity |   | 0.002 | 0.002 | 0.005 | 0.01 | —— | —— | ||
| Symmetry |  | 0.01 | 0.02 | 0.05 | 0.1 | —— | |||
| Runout | Circular Runout |   | 0.001 | 0.003 | 0.005 | 0.01 | —— | ||
| Total Runout |   | 0.003 | 0.005 | 0.01 | 0.02 | —— | |||
*Please clearly indicate tolerances for nominal sizes below 0.5mm on your technical drawing.
CNC milling design guidelines
Check the recommended and technically feasible values for the most common features encountered in CNC machined parts.
| Feature | Recommended size | Feasible size |
|---|---|---|
| Min. feature size | Ø 2.5 mm | Ø 0.50 mm |
| Internal edges | R 8 mm | R 0.25 mm |
| Minimum wall thickness | 0.8 mm (for metals) 1.5 mm (for plastics) | 0.5 mm (for metals) 1.0 mm (for plastics) |
| Holes | Diameter: standard drill bit sizes Depth: 4 x diameter | Diameter: Ø 0.5 Depth: 10 x diameter |
| Threads | Size: M6 or larger Length: 3 x diameter | Size: M2 |
We have high standards for CNC milling
We manufacture your custom parts according to strict manufacturing standards and ensure all parts and processes adhere to the Xavier Standard. A thorough verification of these requirements is included in our inspection report that we ship with every order.
-
Standard 1PO consistent
We ensure that every part after machining is as specified in the PO as customer requirements.
-
Standard 2Quality check
Prior to MP shipment to ensure that each part meets order specifications and Xavier standards.
-
Standard 3Require consistent
Ensure conformance of parts and any required documentation prior to dispatching the order.
