Custom Shaft Manufacturing: Types, Technology, Materials and Techniques
Custom shaft manufacturing is a specialized process that involves the production of shafts customized to specific needs. These shafts are used in a variety of industries such as automotive, aerospace and manufacturing. This article will explore custom shaft manufacturing and discuss the process technology and techniques that help ensure successful production.
1.What is custom shaft manufacturing?
Custom shaft manufacturing is the process of designing and producing shaft parts specifically to meet specific application needs. Such shafts are usually cylindrical or rod-shaped structures and are used in mechanical systems to transmit rotary power or achieve linear motion.
Unlike standard shaft parts, the design of custom shafts is personalized according to the specific working conditions, mounting structure, load requirements and operating accuracy of the equipment, so it has more advantages in performance and matching.
Custom shafts can be made of a variety of metal materials such as steel, stainless steel, aluminum or titanium, and the specific choice depends on the required strength, weight, corrosion resistance and use environment.
During the manufacturing process, custom shafts are usually manufactured by closely communicating with customers to determine the size, tolerance, structural shape and surface treatment requirements, and then using high-precision CNC machining technology. Only experienced custom shaft manufacturers can strictly control the accuracy and quality.
Custom shaft manufacturing is widely used in aerospace, automotive, medical equipment, automation systems and heavy industry. It enables engineers to overcome the limitations of general standard parts and achieve more efficient and stable mechanical design goals. It is an indispensable and important part of modern precision manufacturing.
2.What are the steps in custom shaft manufacturing? Complete process introduction
The processing process of custom shaft manufacturing usually covers a complete set of steps from design concept to precision manufacturing to final inspection, aiming to ensure that each shaft can meet the high requirements of specific applications in terms of size, structure, surface and performance. The following is a standard custom shaft processing process and a detailed description of each key link:
(1) Demand confirmation and design stage
The first step in custom shaft manufacturing is to clarify the product’s usage scenarios and functional requirements. After in-depth communication between customers and our Xavier engineers, the basic parameters of the shaft, such as application direction, load capacity, speed range, environmental conditions (such as corrosion resistance and wear resistance), are determined.

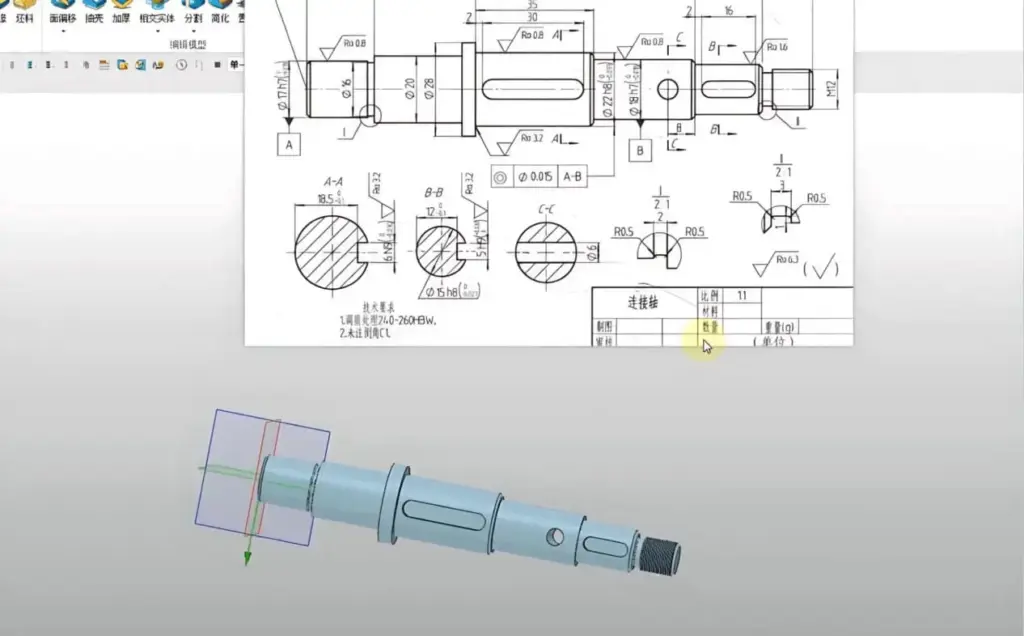

Based on this information, our designers will use CAD (computer-aided design) software to create 3D drawings and accurately draw the shape, structural details, tolerance zone and key dimensions of the shaft.
(2) Material selection
Choosing the right metal material according to the use requirements is a crucial step. Common custom shaft materials include carbon steel (such as 1045), stainless steel (such as 304, 316), aluminum alloy, titanium alloy and brass.
Our Xavier engineers will comprehensively consider factors such as the strength, weight, corrosion resistance, processability and cost of the shaft to select the most suitable material.
(3) CAM programming and process development
After completing the design, use CAM (computer-aided manufacturing) software to plan the path of the shaft geometry and processing technology. By writing G-code and other instructions, accurate processing programs are generated for CNC numerical control equipment.
The program contains core parameters such as feed speed, cutting depth, tool path, etc., and is uploaded to the machine tool controller to guide subsequent cutting operations.
(4) CNC machine tool settings
Before entering the formal processing, it is necessary to properly set up the selected CNC equipment, such as CNC lathes, milling machines, and compound machining centers. This process includes:
● Clamping raw materials (bars or forgings)
● Installing suitable CNC tools (such as end mills, turning tools, drills, etc.)
● Configuring the fixture system to ensure the rigidity and positioning accuracy of the shaft during processing
● Setting the coolant or lubricant system to optimize the cutting effect and extend the tool life
(5) Precision machining
The formal processing process includes multiple steps, depending on the complexity of the shaft structure. Common processes include:
● CNC turning

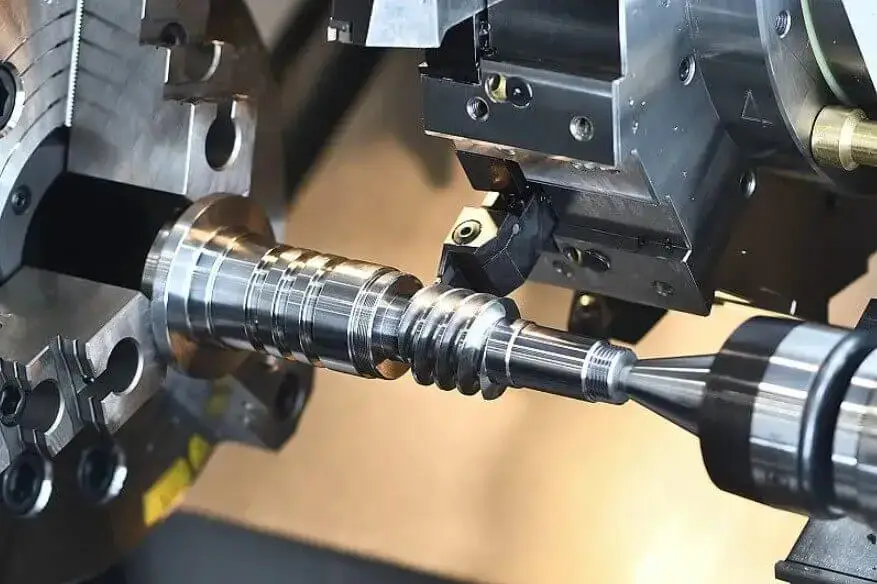

This is the most common processing method and is suitable for making cylindrical shafts. Fix the shaft material and then let it rotate, and use the tool to cut out the shape and size you want. This method can ensure that the shaft shape is straight and smooth, which is suitable for mass production.
● CNC milling
Milling is mainly used to process some complex structures on the shaft, such as keyways, flat surfaces, chamfers, etc. The tool rotates to cut the material on the shaft, which is suitable for the assembly requirements between fine parts.
● CNC drilling
It is the technology of drilling holes on the shaft, such as through holes, threaded holes or oil holes. It is common on custom shafts that need to be connected, fixed or lubricated.
● CNC grinding
If the surface requirements of the shaft are particularly high, such as very smooth and very precise dimensions, then grinding should be used. Use a grinding wheel to gently grind. Although the cutting amount is not large, the accuracy is very high and the last bit of error can be adjusted.
● Electrospark machining (EDM)
This is a method that does not rely on tools, but uses electric sparks to erode the material bit by bit. It is suitable for making some particularly small or complex structures on the shaft, such as deep grooves, sharp angles, inner cavities, etc., and it is used when it is difficult to make with traditional tools.
● Broaching
Broaching is a highly efficient finishing method for producing internal and external gears, keyways, splines, and other precisely shaped contours on custom shafts. The process involves using a broach with multiple rows of cutting teeth to gradually remove material until the desired geometry is achieved. Unlike single-tooth tools, each tooth on a broach is slightly larger than the previous one, resulting in continuous cutting and gradual shaping.
(6) Surface treatment
After processing, you can choose a variety of surface treatment methods to improve the functionality and appearance of the shaft. Common methods include:
● Sandblasting
Using fine sand to hit the surface of the shaft at high speed, it can remove impurities on the one hand, and make the surface delicate and textured on the other. This treatment will give the surface of the shaft a matte effect, which looks more advanced.
Mainly used for aluminum shafts, it forms a hard protective film on the surface of the shaft to prevent corrosion and scratches, and can also be colored to make the appearance better. For example, many of the blue and red aluminum accessories we often see are made using this process.
● Polishing
Polishing makes the surface of the shaft as bright as a mirror. Not only is it beautiful, but it can also reduce friction and improve corrosion resistance. It is mostly used in high-requirement fields such as medical equipment and precision instruments.
● Chrome plating
It is to plate a very thin layer of chrome on the surface of the shaft, which can improve hardness, wear resistance, and prevent rust. The surface will look brighter, which is very suitable for shafts with heavy loads or that need to be used repeatedly.
This is a rust-proof treatment specifically used on stainless steel. It uses chemical solutions to wash away impurities on the surface, leaving a “passivation film” that protects the metal from corrosion and is particularly suitable for humid or chemical environments.
● Electroplating (nickel plating, plating zine, etc.)
Electroplastically plating a layer of metal, such as nickel, zinc, copper, etc., on the surface of the shaft can improve rust resistance and beautify the appearance. It is often used in outdoor equipment or mechanical shafts exposed to harsh environments for a long time.
(7) Inspection and quality control
After processing and surface treatment, a strict inspection process must be carried out to ensure that the product meets the expected specifications and accuracy. Testing methods include:
Use calipers, micrometers, gauges, etc. to measure the key dimensions of the shaft
Use a circular runout tester to detect concentricity and axial deviation
Use a surface roughness tester to evaluate the finish of the machined surface
Use a hardness tester or material tester to sample the performance of the shaft
Summary:
The processing flow of a custom shaft is not just a single CNC cutting operation, but a complete manufacturing system covering design, materials, programming, equipment debugging, precision machining, surface treatment and quality control.
Each step in this process directly affects the performance and reliability of the final shaft product, so it is necessary to select a custom shaft manufacturer with a high degree of manufacturing experience and professional capabilities. We at Xavier can provide you with custom shaft prototyping and machining services.
3.The most common types of shafts and their industry uses
The following is a systematic summary of the types of shaft parts, including three major parts: common structural types, typical application product types, and expansion and supplementary types. As a custom shaft manufacturer, the content we summarize is suitable for technical descriptions, product introductions or customer selection references. The following is a detailed classification introduction:
(1) Common structural types (classified by functional design)
Solid shaft

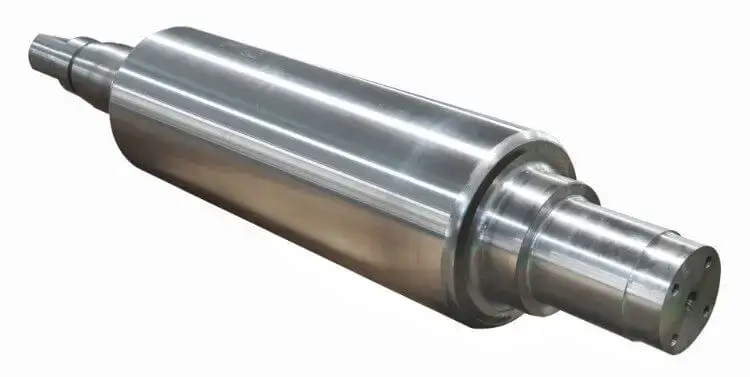

Solid shaft is the most basic and common shaft structure, which is made of a whole piece of metal material. Due to its simple structure and high strength, it is widely used in mechanical equipment, motor output and power transmission scenarios requiring high rigidity.
Hollow shaft
The middle of the hollow shaft is a through hole. This design greatly reduces the overall weight and is also convenient for arranging cables, oil circuits or cooling systems inside. Therefore, this type of shaft is particularly suitable for equipment that requires lightweight, such as automated machinery, aircraft, racing systems, etc.
Keyway shaft

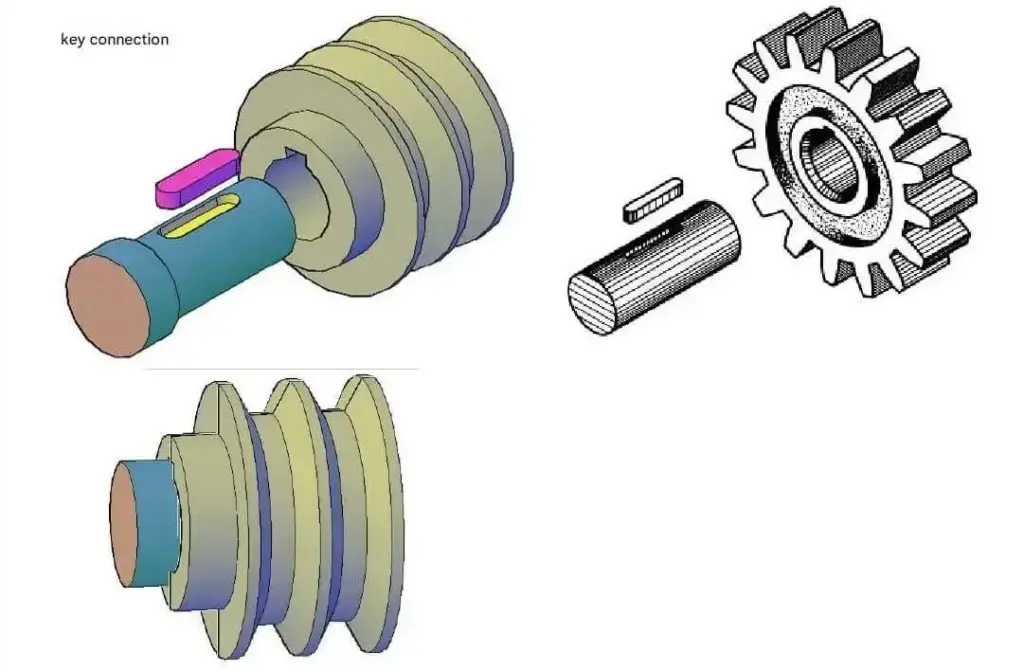

The shaft body of the keyway shaft is machined with one or more longitudinal grooves, and the key is used to transmit torque with other components (such as couplings and gears). It is a classic and reliable shaft structure that is widely used in various general machinery.
Spline shaft
The shaft body of the spline shaft is provided with multiple evenly distributed grooves or teeth along the length direction, which can cooperate with the spline hole to transmit greater torque. Commonly used in transmission occasions with high loads and frequent speed changes, such as automobile gearboxes, hydraulic equipment and industrial robots.
Threaded shaft
Threaded shafts are processed with threads on the surface and are suitable for converting rotational motion into linear motion. They are often used in positioning systems, CNC equipment, lifting mechanisms and other occasions that require high-precision feeding.
Tapered shaft
The diameter of the tapered shaft gradually changes along the length direction and is used to match components with tapered holes (such as pulleys and chucks). This structure has good automatic positioning function, firm assembly and easy disassembly. It is commonly used in power output ends or spindle assemblies.
Stepped shaft
The stepped shaft has sections of different diameters on the shaft body, which facilitates the installation of multiple components in sequence, such as bearings, camshafts or transmission wheels.. It is a design that combines installation convenience and structural clarity, and is commonly used in various power systems and precision equipment.
(2) Typical application product types (classified by industry use)
Motor shaft/spindle
The motor shaft connects the rotor and the load and is the main channel for the motor to output power. Depending on the actual use, it can be designed as solid, hollow, keyway or spline structure to adapt to different torque, precision or installation requirements.
Gear shaft

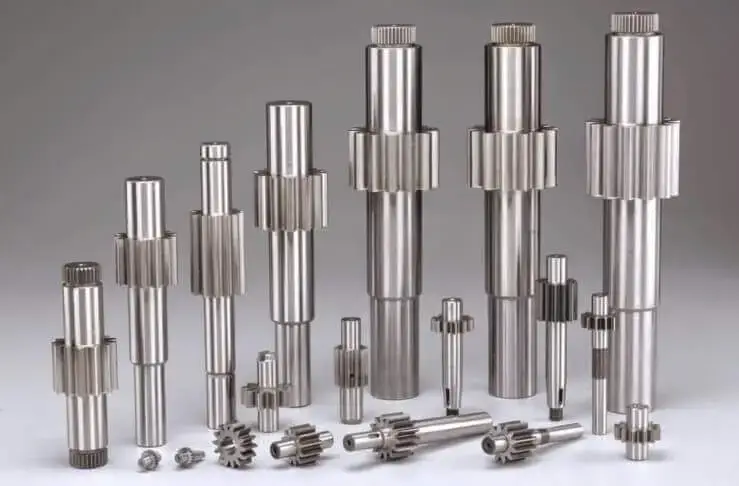

This type of shaft is used to install a group or more gears to transmit or change the rotation speed and direction. It is widely used in gearboxes, gear transmission systems and large mechanical equipment. The design is usually a stepped shaft combined with a keyway or spline.
Worm shaft
The shape of the worm shaft is similar to a threaded shaft. It is used to mesh with the worm gear to form a mechanical structure with a large reduction ratio. It is widely used in lifting platforms, winch systems or machine tool feed mechanisms.
Drive shaft/universal shaft
This type of shaft is usually used to connect two mechanical parts that are not in the same straight line to achieve torque transmission over long distances or angle changes. It is often used in automotive drive axles, engineering machinery or industrial robot systems.
Axle shaft/wheel axle
The wheel axle is used to connect the wheel and the frame, both carrying weight and transmitting driving force. It is widely used in transportation equipment, heavy trailers and engineering vehicles.
Lead screw (screw)
Lead screw is a transmission shaft specially used for high-precision linear motion. It is widely used in CNC machine tools, 3D printers, precision testing platforms, etc. The structure is mostly in the form of ball screw or trapezoidal thread.
(3) Structural supplement types and characteristics (special customized shaft)
Welded combination shaft
Welded combination shaft is a complex structure shaft that connects shaft segments of different structures or different materials by welding. For large-sized shaft parts, it can reduce the manufacturing difficulty and material cost.
Forged shaft
Forged shaft is a high-strength shaft product that is formed by hot forging and then fine-processed. It has extremely high load-bearing capacity and fatigue resistance. It is commonly used in heavy industrial equipment.
Hollow multi-section shaft
This shaft combines a hollow structure with a multi-section ladder design. It not only achieves the purpose of weight reduction, but also allows sensors, flanges or support components to be installed on different sections.
Positioning shaft with through hole or key pin hole
This type of shaft has a special through hole, screw hole or pin hole on the shaft body or end for precise alignment, fixture positioning or part limit. It is frequently used in automated assembly lines and fixture systems.
Summary and suggestions:
There are many types of custom shafts. When choosing, you should make comprehensive considerations based on the working environment, load requirements, installation methods and supporting structures. Reasonable selection can not only extend the life of the equipment, but also optimize the overall operating efficiency. It is an indispensable and important basic component in industrial machinery. By understanding the differences in the structure and function of different shaft types, it is helpful to make more scientific judgments and matches in the product design and customization process.
4.Materials used in custom shaft manufacturing
When manufacturing custom shafts, it is very important to choose the right material. The material must be able to withstand the load during work and have good processability and service life. The following are some common types of materials in actual processing, each of which has different characteristics and application scenarios:
(1) Aluminum
Aluminum is light, corrosion-resistant, and has good processability. It is particularly suitable for applications with strict weight requirements, such as aviation, automation equipment or robots. Although the strength is not as good as steel, aluminum is a good choice for improving efficiency and reducing load within the range allowed by the structure.
(2) Alloy steel
Alloy steel is made by adding specific alloying elements (such as chromium, molybdenum, etc.) to ordinary carbon steel to enhance its strength and wear resistance. Alloy steels such as 4140 and 4340 are widely used in high-strength, high-impact industrial shaft parts, such as large machinery and mining equipment.
(3) Carbon steel
Carbon steel is one of the most common shaft processing materials. It has high strength, is easy to process, and is relatively affordable. For example, medium-strength carbon steel such as 1045 is very suitable for parts such as motor shafts and pump shafts. Moreover, it can be improved by heat treatment to improve hardness and durability, making it a popular material for general-purpose mechanical shaft parts.
(4) Stainless steel
Stainless steel is not only strong and reliable, but also has excellent corrosion resistance. Common stainless steels such as 304 and 316 are suitable for humid and corrosive environments, such as food processing, marine equipment or medical equipment. It has beautiful appearance and strong durability, making it an ideal choice for scenes with rust prevention requirements.
(5) Titanium
Titanium is known for its high strength-to-weight ratio and excellent corrosion resistance. It is particularly common in high-end manufacturing fields such as aviation and medical. Although titanium processing is difficult and expensive, the reliability of titanium shafts is irreplaceable in environments with extremely high performance requirements.
(6) Nickel alloys
Nickel alloys such as the Inconel series (600, 800, etc.) have excellent performance in high-temperature and highly corrosive environments and are particularly suitable for harsh industrial environments such as turbines and chemical plants. They can maintain structural stability and are the preferred material for high-temperature resistant shafts.
(7) Brass
Brass is an alloy of copper and zinc with good machinability and certain corrosion resistance. It is more common in shaft applications that require conductivity or decoration, such as instrumentation, small machinery or electrical transmission components. Brass also has a certain degree of self-lubricity and is suitable for low-load, low-speed shaft structures.
Summary:
When choosing a suitable shaft material, consider the shaft load capacity, operating environment, processing difficulty and cost. Aluminum is lightweight, stainless steel is rust-proof, carbon steel is economical, alloy steel is strong, titanium is suitable for high performance needs, nickel alloys can withstand high temperatures, and brass is suitable for medium and light load applications that require processability and appearance. Reasonable material selection is the first step to ensure the service life and stability of custom shafts.
5.Tips for designing and manufacturing custom shafts
The tips for designing and manufacturing custom shafts mainly include the following aspects:
(1) Strictly control dimensional accuracy

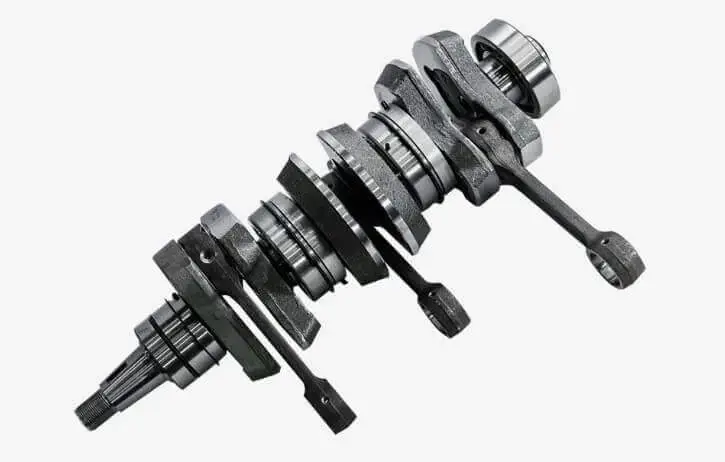

The diameter, length and various key features of the custom shaft must be accurately processed and the tolerances must be properly controlled. Only by ensuring the accuracy of these dimensions can the shaft and parts such as bearings, gears, couplings, etc. be properly matched to avoid vibration, runout and other problems after installation.
It is recommended to use precision processing methods such as CNC turning and grinding, and refer to ISO or other industry standards to select a reasonable tolerance range.
(2) Ensure axis alignment
The shaft must be strictly aligned with other components during operation to avoid vibration, noise, wear or premature failure caused by eccentricity. High-precision tools such as laser alignment instruments and laser centrifugal machines can be used for alignment, and factors that may affect alignment, such as temperature changes and thermal expansion, should be considered during design.
(3) Clarify expected loads and torques
In the design stage, it is necessary to analyze the load conditions that the shaft will be subjected to, including dynamic loads, peak loads and torque levels. Only by understanding these parameters can we choose the right material and size to prevent shaft failure.
(4) Perform stress analysis
In order to ensure the reliability of the shaft during use, the finite element analysis (FEA) tool should be used to simulate the stress distribution of the shaft structure under various loads such as bending moment, torque, and axial load. This can detect potential stress concentration areas in advance and optimize the structure, thereby improving the safety of shaft use.
(5) Select the right processing technology
Select the appropriate processing process according to the structural design, material type and batch requirements of the customized shaft. Common processes include: turning, milling, grinding, and forging, cold rolling, heat treatment, etc. when necessary. It is necessary to ensure that these processes can achieve the required dimensional accuracy, geometric tolerance and surface quality.
(6) Use appropriate surface treatment
After the customized shaft is processed, select the appropriate surface treatment method according to the use environment, such as sandblasting, polishing, anodizing, chrome plating, passivation, etc. These treatments can greatly improve the wear resistance, corrosion resistance and aesthetics of the shaft, so that the shaft can adapt to actual use conditions.
(7) Strict quality control
A strict inspection process should be established during the manufacturing process. Including dimensional measurement (caliper, micrometer), circular runout/concentricity detection, surface roughness measurement, hardness detection and other means. Dynamic balancing test or non-destructive testing can also be performed when necessary. Keep detailed inspection records to ensure product traceability and ensure that each shaft meets the design requirements.
Choose a custom shaft manufacturer that can meet your parts needs
If you are looking for a reliable, professional and long-term custom shaft manufacturer, then Xavier is your ideal choice. We focus on the design and manufacture of high-precision custom shafts, serving multiple industries such as automobiles, industrial equipment, aerospace, and energy, and are committed to providing customers with high-quality products with stable performance and application requirements.
We have rich production experience and mature technical accumulation, and can produce shaft parts of various structural types including gear shafts, motor shafts, spline shafts, worm shafts, etc. Whether it is a simple solid shaft or a complex multi-section functional shaft with keyways or threads, we can ensure processing accuracy and assembly adaptability through advanced CNC machining, forging, die casting and investment casting processes.
In terms of quality control, we always adhere to high standards, and the production process is ISO certified and full-process inspection management is implemented. From the entry of raw materials to the shipment of finished products, every link is strictly controlled to ensure that each shaft meets the requirements of the drawings, dimensional accuracy and functional performance.
We also have flexible production organization capabilities, which can quickly respond to small-batch customization and support large-scale production, with stable delivery time, to meet the supply needs of customers in different industries. Relying on a global manufacturing network and a stable logistics system, our products have served many international customers and have been widely recognized.
In addition, our engineering and technical team also has rich experience in project collaboration. Yes, we can also provide custom shaft prototyping and machining services. From early structural design, material selection, surface treatment suggestions, to later processing solution optimization, we can provide customers with professional advice and technical support to help you develop more reliable and cost-effective products.
Conclusion:
Custom shaft manufacturing involves the use of a variety of drawing software and manufacturing technologies to process shafts to meet design specifications. There are many types of shafts, each of which is precisely designed according to specific application requirements.
FAQs:
What are the standard tolerances for CNC machined shafts?
The tolerances for machined shafts vary depending on the application and specific requirements. However, standard tolerances for CNC machined shafts range from +/- 0.01 mm to +/- 0.05 mm.
What are custom machined shafts used for?
Shafts are critical rotating components in an engine or machine that are responsible for transmitting power from one engine part to another.
What is the best custom shaft machining technology?
CNC turning is the most suitable machining process for manufacturing shaft parts. It is a widely used subtractive machining process that rotates a blank material (bar) fixed in a chuck while a specialized cutting tool is used to remove the blank material to create a shaft part with the desired features.
What materials should not be used to manufacture shafts?
Certain materials are generally not suitable for manufacturing shafts due to their inherent properties. For example, materials with low strength, poor fatigue resistance, or corrosion susceptibility are not suitable for shaft applications that require reliable and durable performance. For example, plastics, ceramics, and cast iron are not suitable.
Which industries typically use custom shaft manufacturing?
Custom shaft manufacturing is widely used in industries such as aerospace, industrial machinery, automotive, automated robotics, and specialty equipment, which often require custom solutions to meet unique application requirements.
